| Model Number |

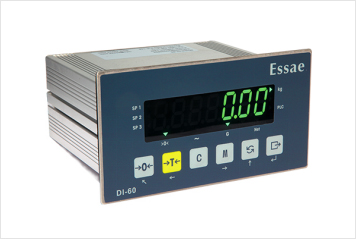

DI-60 |
| Indicator |

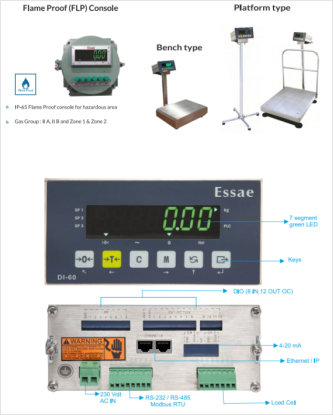

Panel Mount Indicator |
| Console MOC |
Aluminium |
| Weighing Units |
Kg |
| Display resolution |
Up to 1/15000 |
| Weight Sensor |
Load Cell |
| ADC |
24-bit precision delta-sigma |
| Display type |
7 Segment Display |
| Colour |
Green |
| Display Size |
20.3mm (0.8") |
| Key |
6 function keys (zero, tare, clear, edit, switch Inc, Print key) |
| Keypad Lock can be locked via remote communication (MODBUS-RTU/Ethernet/IP) |
| Standard Interfaces |
1 X RS-232 Serial |
| 1 X RS-485 Modbus RTU, Support, Integer & Floating weight data |
| Optional Interfaces |
Ethernet/IP, Connect to PLC, report integer weight data and Floating weight data |
| 4-20mA Analog output - 16bit |
| DIO (8 IN and 12 OUT - OC Type) |
